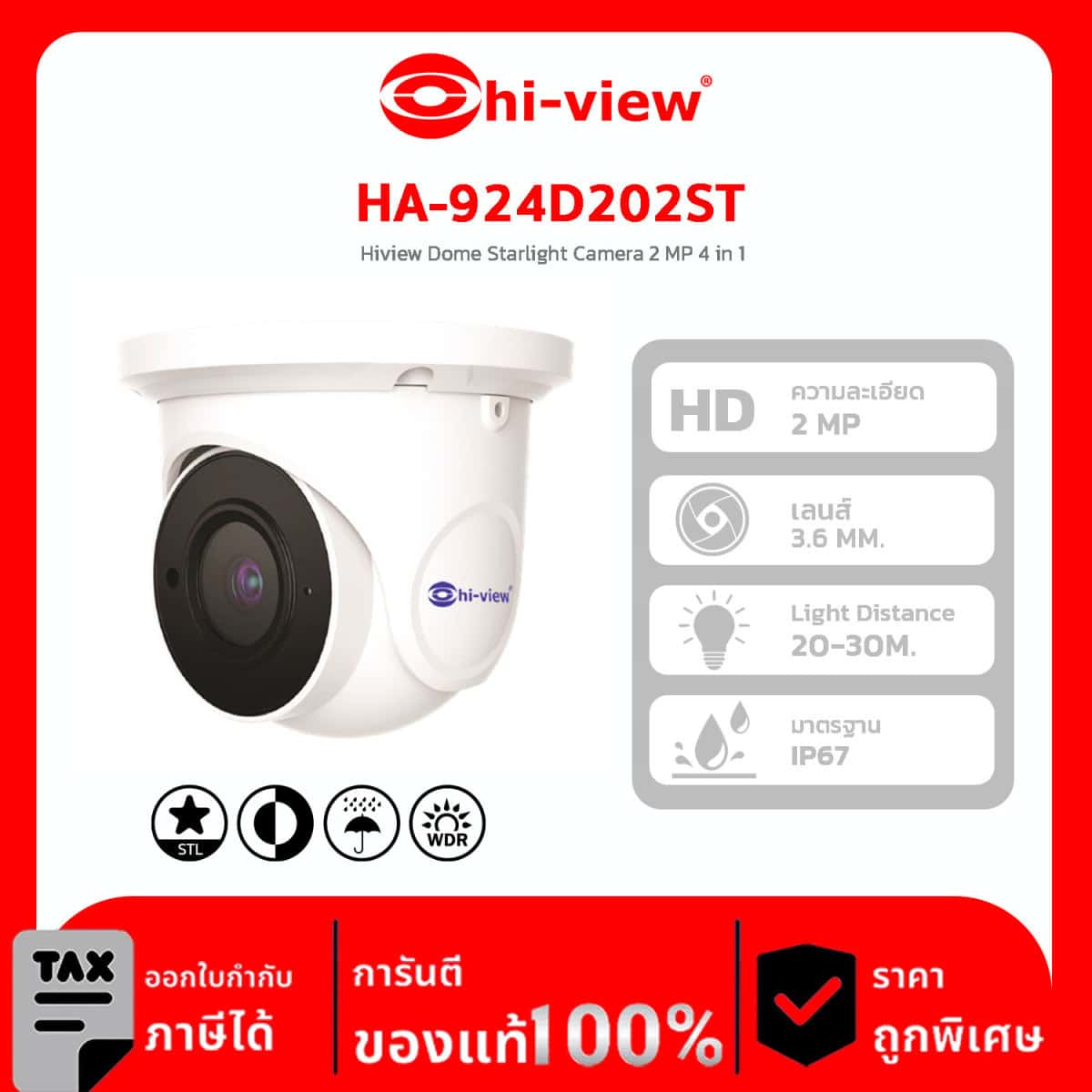

AHD Camera Hi-View รุ่น HA-924D202ST Hiview Dome Starlight Camera 2 MP 4 in 1
1080P real time image, high definition, true color, starlight, AHD / TVI / CVI standard and lossless video output, Up to 1000 TVL resolution, CMOS progressive scan, periectly capture the moving object, Support OSD menu, High speed, long distance and real time transmission, Auto color to B / W at low illumination, Support ICR switch, true day / night, Support noise reduction function, 20 ~ 30m IR night view distance, IP 67, Support COC, Support 960H CVBS output
- 1080P real time image, high definition, true color, starlight
- AHD / TVI / CVI standard and lossless video output
- Up to 1000 TVL resolution
- CMOS progressive scan, periectly capture the moving object
- Support OSD menu
- High speed, long distance and real time transmission
- Auto color to B / W at low illumination
- Support ICR switch, true day / night
- Support noise reduction function
- 20 ~ 30m IR night view distance
- IP 67
- Support COC
- Support 960H CVBS output
| Image Sensor | 1/2.8 “CMOS |
| Resolution | 2MP |
| Image Size | 1920×1080 |
| Video Output | AHD / TVI / CVI / CVBS |
| Image System | PAL / NTSC |
| Electronic Shutter | Auto: 1/25s~1/50000s(PAL): 1/30s~1/50000s(PAL) |
| IR Distance | 20 – 30 m |
| Frame Rate | 30lps(60Hz): 25fps(50Hz) |
| Min. Ilumination | Color : 0,001 lux@f1.2. AGC ON; |
| B/W : 0 lux with IR | |
| Lens 3.6 mm | (2.8 mm optional) |
| Lens Mount | M12 |
| S/N Ratio | ≥ 52dB (AGC OFF) |
| Ingress Protection | IP 67 |
| Functions | |
| Function Control | OSD (COC Control) |
| Day & Night | ICR |
| WDR | Yes (120dB) |
| 3D NR | Yes |
| Global Exposure | No |
| Central Exposure | No |
| AGC | Yes |
| Auto White Batance | Yes |
| BLC / LSC / HLC | Yes |
| Freeze | Yes |
| Mirror | Yes |
| Defog | No |
| Sharpness | Yes |
| Smart IR | Yes |
| Motion Detection | Yes |
| Privacy Mask | Yes |
| Defect Correction | Auto |
| Language | 16 languages |
| Angle Adjustment | Pan: 0 ํ-360 ํ: Till: 0 ํ-90 ํ : Rotation:0 ํ-360 ํ |
| Others | |
| Power Supply DC12V | 土15%) |
| Power Consumption | IR OFF: < 1.5W; IR ON; < 4W |
| Working Environment | -30 ํC – 50 ํC, 10% – 90% (relative humidity) |
| Dimensions (mm) | 108 x 95.7 |
| Weight (net) | Approx. 0.41KG |
