| NETWORK | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| HARDWARE FEATURES | |
|---|---|

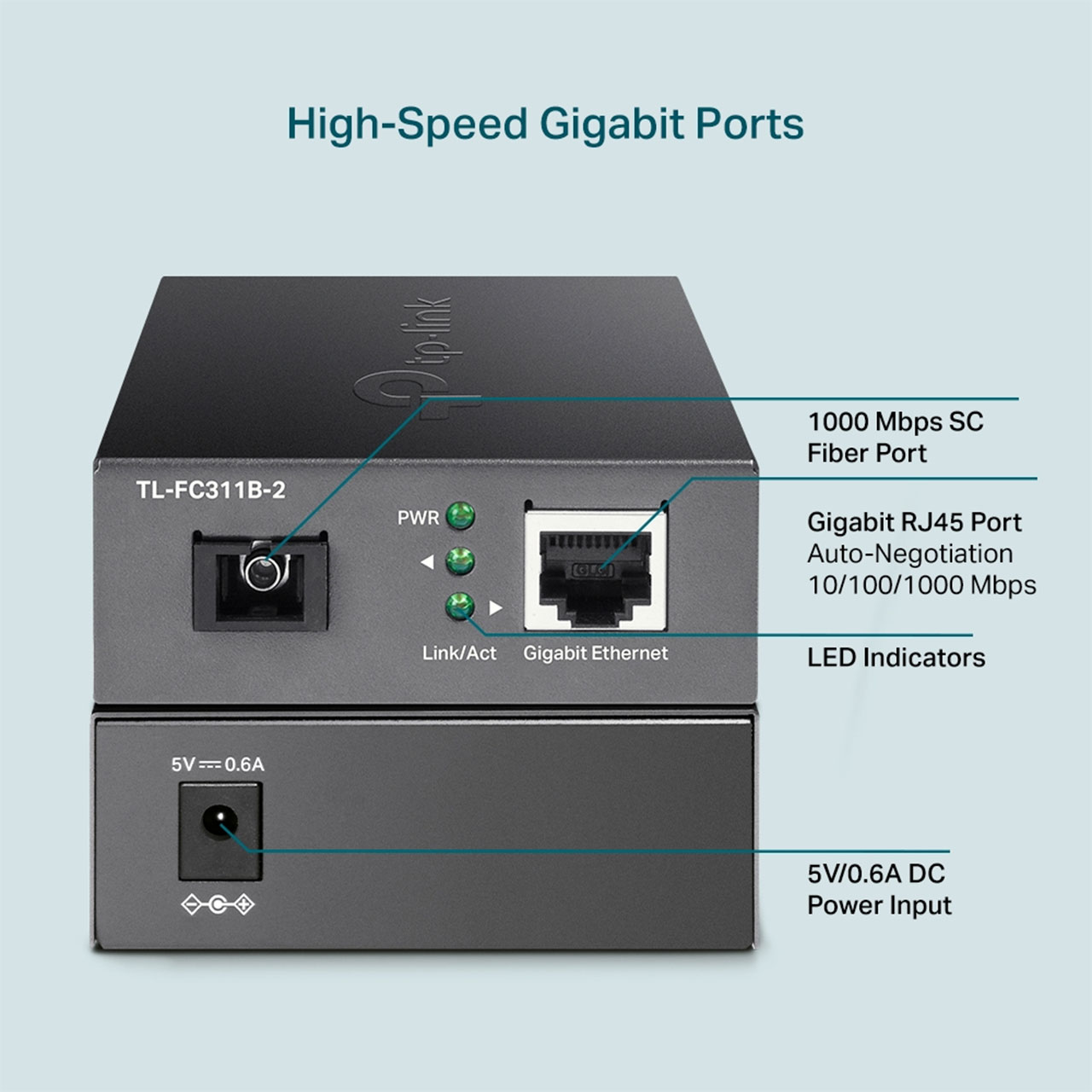

| Interface | • 1× Gigabit SC/UPC Fiber Port • 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) |
| Network Media | • Single-mode Fiber (9/125μm, maximum 2km) • UTP category 5, 5e cable (maximum 100m) |
| Power Supply | External Power Adapter: 5 V/0.6 A |
| LED | PWR, Link/Act |

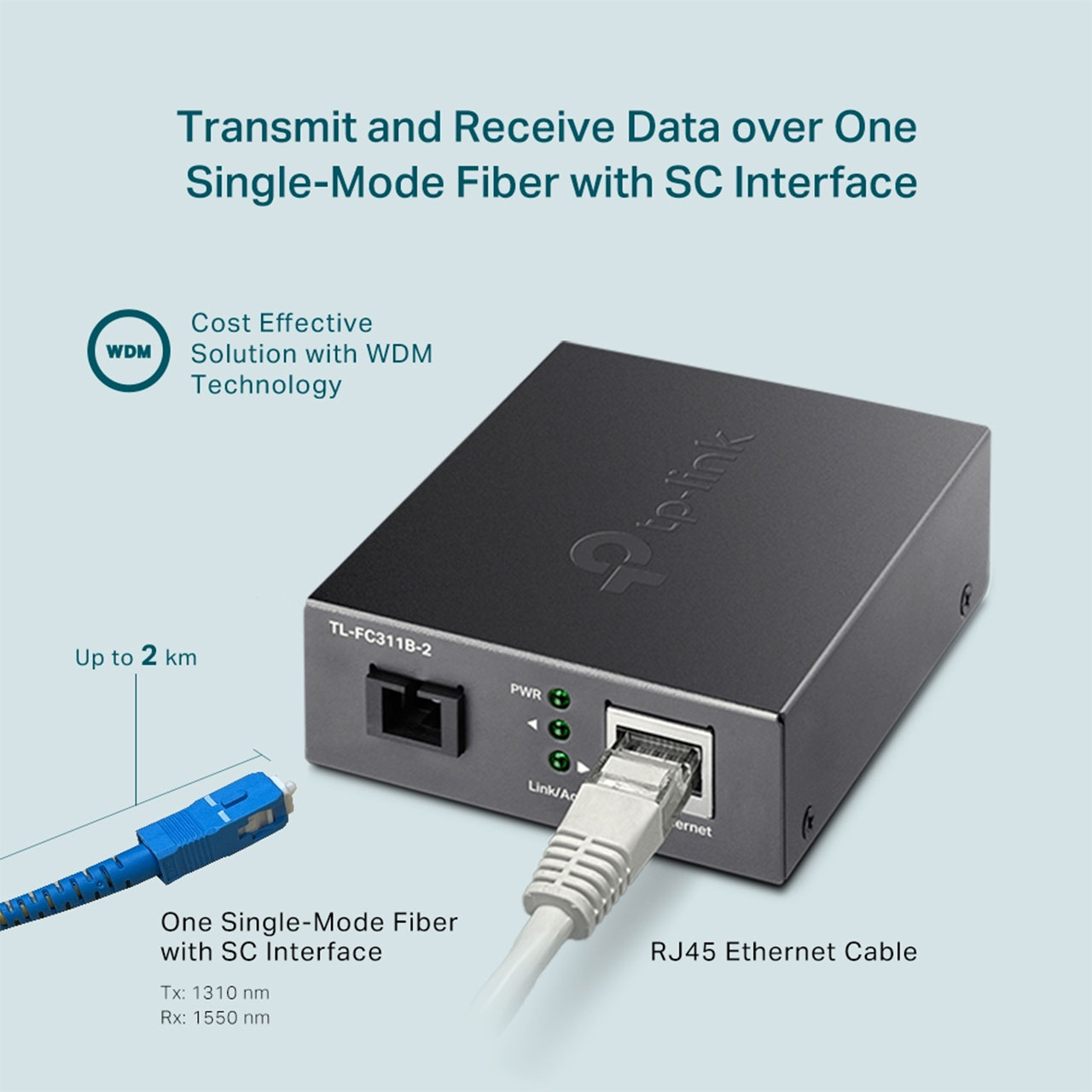

| Wave Length | • 1310 nm TX • 1550 nm RX |
| Dimensions ( W x D x H ) | 3.7×2.9×1.1 in (94.5×73.0×27.0 mm) |
| ENVIRONMENT | |
|---|---|
| Operating Temperature | 0˚C to 50˚C (32˚F to 122˚F) |
| Storage Temperature | -40˚C to 70˚C (-40˚F to 158˚F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| OTHERS | |
|---|---|
| Package Content | • Media Converter FC311B-2 • Power Adapter • Installation Guide |
